Your Current Location >Home > Products > Varistors > 34SK Series-Imax:40KA

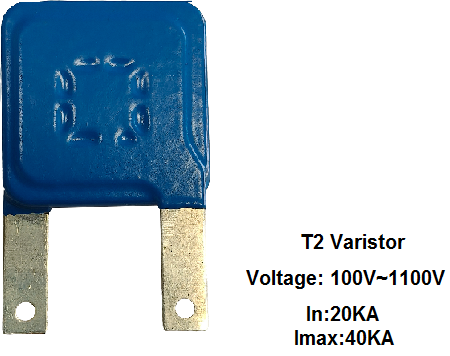

34SK Series-Imax:40KA

Voltage: 100V~1800V

60Vac ~ 1000Vac

85Vdc ~ 1465Vdc

Datasheet

Description

Free sample available

Fast quotation within 24 hours

Contact via WhatsApp: +86 13427905674
👉 Click here to contact us on WhatsApp

	Part Number	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage		Surge Operating Duty Test IEC 61643-11(8/20μs)		Safety Certification
		VAC	VDC	V1mA(V)	IP(A)	VC(V)	Imax	In	UL /CUL
34SK201		130V	170V	200(180~220)	300	340	40KA	20KA	√
34SK221		140V	180V	220(198~242)	300	360	40KA	20KA	√
34SK241		150V	200V	240(216~264)	300	395	40KA	20KA	√
34SK271		175V	225V	270(243~297)	300	455	40KA	20KA	√
34SK301		190V	250V	300(270~330)	300	500	40KA	20KA	-
34SK331		210V	275V	330(297~363)	300	550	40KA	20KA	√
34SK361		230V	300V	360(324~396)	300	595	40KA	20KA	√
34SK391		250V	320V	390(351~429)	300	650	40KA	20KA	√
34SK431		275V	350V	430(387~473)	300	710	40KA	20KA	√
34SK471		300V	385V	470(423~517)	300	775	40KA	20KA	√
34SK511		320V	415V	510(459~561)	300	845	40KA	20KA	√
34SK561		350V	460V	560(504~616)	300	925	40KA	20KA	√
34SK621		385V	505V	620(558~682)	300	1025	40KA	20KA	√
34SK681		420V	560V	680(612~748)	300	1120	40KA	20KA	√
34SK751		460V	615V	750(675~825)	300	1240	40KA	20KA	√
34SK781		485V	640V	780(702~858)	300	1290	40KA	20KA	√
34SK821		510V	670V	820(738~902)	300	1355	40KA	20KA	√
34SK911		550V	745V	910(819~1001)	300	1500	40KA	20KA	√
34SK951		575V	760V	950(855~1045)	300	1570	40KA	20KA	√
34SK102		625V	825V	1000(900~1100)	300	1650	40KA	20KA	√
34SK112		680V	895V	1100(990~1210)	300	1815	40KA	20KA	√
34SK122		750V	980V	1200(1080~1320)	300	1980	40KA	20KA	√
34SK142		880V	1140V	1400(1260~1540)	300	2310	40KA	20KA	-
34SK162		1000V	1280V	1600(1440~1760)	300	2640	40KA	20KA	-
34SK182		1100V	1465V	1800(1620~1980)	300	2970	40KA	20KA	-
