SMF - 200W

SMF - 200W

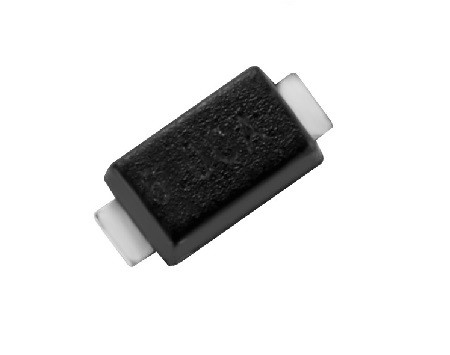

Package:  SOD-123FL
Power:  200W
Voltage:  3.3V~190V

Part  Number


Reverse

Stand-Off Voltage

Breakdown

Voltage VBR(V)

Maximum

Clamping

Voltage

Peak Pulse  Current

Certification

Delivery Time

Uni-Polar

Bi-polar

VRWM

Min

Max

VC

IPP(A)

UL

days

SMF3.3A

---

3.3V

4.10

4.75

7.3V

27.40

---

12days

SMF5.0A

SMF5.0CA

5.0V

6.4

7.00

9.2V

21.70

---

12days

SMF6.0A

SMF6.0CA

6.0V

6.67

7.37

10.3V

19.40

---

12days

SMF6.5A

SMF6.5CA

6.5V

7.22

7.98

11.2V

17.90

---

12days

SMF7.0A

SMF7.0CA

7.0V

7.78

8.60

12.0V

16.70

---

12days

SMF7.5A

SMF7.5CA

7.5V

8.33

9.21

12.9V

15.50

---

12days

SMF8.0A

SMF8.0CA

8.0V

8.89

9.83

13.6V

14.70

---

12days

SMF8.5A

SMF8.5CA

8.5V

9.44

10.40

14.4V

13.90

---

12days

SMF9.0A

SMF9.0CA

9.0V

10.00

11.10

15.4V

13.00

---

12days

SMF10A

SMF10CA

10.0V

11.10

12.30

17.0V

11.80

---

12days

SMF11A

SMF11CA

11.0V

12.20

13.50

18.2V

11.00

---

12days

SMF12A

SMF12CA

12.0V

13.30

14.70

19.9V

10.10

---

12days

SMF13A

SMF13CA

13.0V

14.40

15.90

21.5V

9.3

---

12days

SMF14A

SMF14CA

14.0V

15.60

17.20

23.2V

8.6

---

12days

SMF15A

SMF15CA

15.0V

16.70

18.50

24.4V

8.2

---

12days

SMF16A

SMF16CA

16.0V

17.80

19.70

26.0V

7.7

---

12days

SMF17A

SMF17CA

17.0V

18.90

20.90

27.6V

7.2

---

12days

SMF18A

SMF18CA

18.0V

20.00

22.10

29.2V

6.8

---

12days

SMF20A

SMF20CA

20.0V

22.20

24.50

32.4V

6.2

---

12days

SMF22A

SMF22CA

22.0V

24.40

26.90

35.5V

5.6

---

12days

SMF24A

SMF24CA

24.0V

26.70

29.50

38.9V

5.1

---

12days

SMF26A

SMF26CA

26.0V

28.90

31.90

42.1V

4.8

---

12days

SMF28A

SMF28CA

28.0V

31.10

34.40

45.4V

4.4

---

12days

SMF30A

SMF30CA

30.0V

33.30

36.80

48.4V

4.1

---

12days

SMF36A

SMF36CA

36.0V

40.0

44.20

58.1V

3.4

---

12days

SMF40A

SMF40CA

40.0V

44.4

49.10

64.5V

3.1

---

12days

SMF43A

SMF43CA

43.0V

47.8

52.80

69.4V

2.9

---

12days

SMF45A

SMF45CA

45.0V

50.0

55.30

72.7V

2.8

---

12days

SMF48A

SMF48CA

48.0V

53.3

58.90

77.4V

2.6

---

12days

SMF51A

SMF51CA

51.0V

56.7

62.7

82.4V

2.4

---

12days

SMF54A

SMF54CA

54.0V

60.0

66.3

87.1V

2.3

---

12days

SMF58A

SMF58CA

58.0V

64.4

71.2

93.6V

2.1

---

12days

SMF60A

SMF60CA

60.0V

66.7

73.7

96.8V

2.0

---

12days

SMF64A

SMF64CA

64.0V

71.1

78.6

103V

1.94

---

12days

SMF70A

SMF70CA

70.0V

77.8

86.0

113V

1.77

---

12days

SMF75A

SMF75CA

75.0V

83.3

92.1

121V

1.65

---

12days

SMF78A

SMF78CA

78.0V

86.7

95.8

126V

1.59

---

12days

SMF85A

SMF85CA

85.0V

94.4

104

137V

1.55

---

12days

SMF90A

SMF90CA

90.0V

100

111

146V

1.46

---

12days

SMF100A

SMF100CA

100.0V

111

123

162V

1.37

---

12days

SMF110A

SMF110CA

110.0V

122

135

177V

1.23

---

12days

SMF120A

SMF120CA

120.0V

133

147

193V

1.13

---

12days

SMF130A

SMF130CA

130.0V

144

159

209V

1.04

---

12days

SMF150A

SMF150CA

150.0V

167

185

243V

0.96

---

12days

SMF160A

SMF160CA

160.0V

178

197

259V

0.89

---

12days

SMF170A

SMF170CA

170.0V

189

209

275V

0.82

---

12days

SMF180A

SMF180CA

180.0V

201

222

292V

0.77

---

12days

SMF190A

SMF190CA

190.0V

211

232

308V

0.73

---

12days
