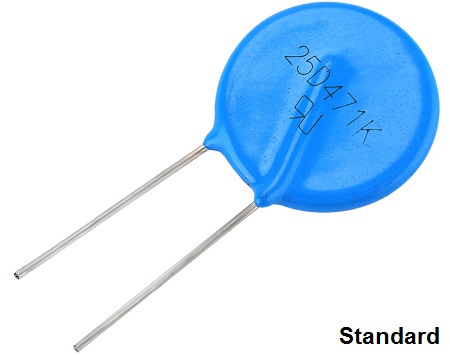

25D Series

Varistor Voltage: 82V ~ 1800V

Max Surge Current: 15KA~20KA

Products Size: 25mm

Datasheet

Description

Part Number Standard 25D	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage	Max Surge Current 8/20μs	Certification		Delivery time
	VAC	VDC	V1mA	VC	Imax	UL	VDE	days
VDR-25D820K	50V	65V	82V (73.8~90.2)	135V	15KA	-	--	25Days
VDR-25D101K	60V	85V	100V (90~110)	165V	15KA	-	--	25Days
VDR-25D121K	75V	100V	120V (108~132)	200V	15KA	-	--	25Days
VDR-25D151K	95V	125V	150V (135~165)	250V	15KA	-	--	25Days
VDR-25D181K	115V	150V	180V (162~198)	300V	15KA	-	--	25Days
VDR-25D201K	130V	170V	200V (185~225)	330V	15KA	√	--	25Days
VDR-25D221K	140V	180V	220V (198~242)	360V	15KA	√	--	25Days
VDR-25D241K	150V	200V	240V (216~264)	395V	15KA	√	--	25Days
VDR-25D271K	175V	225V	270V (243~297)	455V	15KA	√	--	25Days
VDR-25D301K	190V	250V	300V (270~330)	505V	15KA	√	--	25Days
VDR-25D331K	210V	275V	330V (297~363)	550V	15KA	√	--	25Days
VDR-25D361K	230V	300V	360V (324~396)	595V	15KA	√	--	25Days
VDR-25D391K	250V	320V	390V (351~429)	650V	15KA	√	--	25Days
VDR-25D431K	275V	350V	430V (387~473)	710V	15KA	√	--	25Days
VDR-25D471K	300V	385V	470V (423~517)	775V	15KA	√	--	25Days
VDR-25D511K	320V	415V	510V (459~561)	845V	15KA	√	--	25Days
VDR-25D561K	350V	460V	560V (504~616)	920V	15KA	√	--	25Days
VDR-25D621K	385V	505V	620V (558~682)	1025V	15KA	√	--	25Days
VDR-25D681K	420V	560V	680V (612~748)	1120V	15KA	√	--	25Days
VDR-25D751K	460V	615V	750V (675~825)	1240V	15KA	√	--	25Days
VDR-25D781K	485V	640V	780V (702~858)	1290V	15KA	√	--	25Days
VDR-25D821K	510V	670V	820V (738~902)	1355V	15KA	√	--	25Days
VDR-25D911K	550V	745V	910V (819~1001)	1500V	15KA	√	--	25Days
VDR-25D102K	625V	825V	1000V(900~1100)	1650V	15KA	-	--	25Days
VDR-25D112K	680V	895V	1100V(990~1210)	1815V	15KA	-	--	25Days
VDR-25D122K	750V	980V	1200V(1080~1320)	1980V	15KA	-	--	25Days
VDR-25D142K	880V	1140V	1400V(1260~1540)	2310V	15KA	-	--	25Days
VDR-25D162K	1000V	1280V	1600V(1400~1760)	2640V	15KA	-	--	25Days
VDR-25D182K	1100V	1465V	1800V(1620~1980)	2970V	15KA	-	--	25Days
High Surge 25D MOV
Part Number High Surge 25D	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage	Surge Operating Duty Test IEC 61643-11 (8/20μs)		Certification	Delivery time
	VAC	VDC	V1mA	VC	Imax	In	UL	days
VDR-25D820KJ	50V	65V	82V (73.8~90.2)	135V	20KA	10KA	-	25Days
VDR-25D101KJ	60V	85V	100V (90~110)	165V	20KA	10KA	-	25Days
VDR-25D121KJ	75V	100V	120V (108~132)	200V	20KA	10KA	-	25Days
VDR-25D151KJ	95V	125V	150V (135~165)	250V	20KA	10KA	-	25Days
VDR-25D181KJ	115V	150V	180V (162~198)	300V	20KA	10KA	-	25Days
VDR-25D201KJ	130V	170V	200V (185~225)	330V	20KA	10KA	√	25Days
VDR-25D221KJ	140V	180V	220V (198~242)	360V	20KA	10KA	√	25Days
VDR-25D241KJ	150V	200V	240V (216~264)	395V	20KA	10KA	√	25Days
VDR-25D271KJ	175V	225V	270V (243~297)	455V	20KA	10KA	√	25Days
VDR-25D301KJ	190V	250V	300V (270~330)	505V	20KA	10KA	√	25Days
VDR-25D331KJ	210V	275V	330V (297~363)	550V	20KA	10KA	√	25Days
VDR-25D361KJ	230V	300V	360V (324~396)	595V	20KA	10KA	√	25Days
VDR-25D391KJ	250V	320V	390V (351~429)	650V	20KA	10KA	√	25Days
VDR-25D431KJ	275V	350V	430V (387~473)	710V	20KA	10KA	√	25Days
VDR-25D471KJ	300V	385V	470V (423~517)	775V	20KA	10KA	√	25Days
VDR-25D511KJ	320V	415V	510V (459~561)	845V	20KA	10KA	√	25Days
VDR-25D561KJ	350V	460V	560V (504~616)	920V	20KA	10KA	√	25Days
VDR-25D621KJ	385V	505V	620V (558~682)	1025V	20KA	10KA	√	25Days
VDR-25D681KJ	420V	560V	680V (612~748)	1120V	20KA	10KA	√	25Days
VDR-25D751KJ	460V	615V	750V (675~825)	1240V	20KA	10KA	√	25Days
VDR-25D781KJ	485V	640V	780V (702~858)	1290V	20KA	10KA	√	25Days
VDR-25D821KJ	510V	670V	820V (738~902)	1355V	20KA	10KA	√	25Days
VDR-25D911KJ	550V	745V	910V (819~1001)	1500V	20KA	10KA	√	25Days
VDR-25D102KJ	625V	825V	1000V(900~1100)	1650V	20KA	10KA	-	25Days
VDR-25D112KJ	680V	895V	1100V(990~1210)	1815V	20KA	10KA	-	25Days
VDR-25D122KJ	750V	980V	1200V(1080~1320)	1980V	20KA	10KA	-	25Days
VDR-25D142KJ	880V	1140V	1400V(1260~1540)	2310V	20KA	10KA	-	25Days
VDR-25D162KJ	1000V	1280V	1600V(1400~1760)	2640V	20KA	10KA	-	25Days
VDR-25D182KJ	1100V	1465V	1800V(1620~1980)	2970V	20KA	10KA	-	25Days
