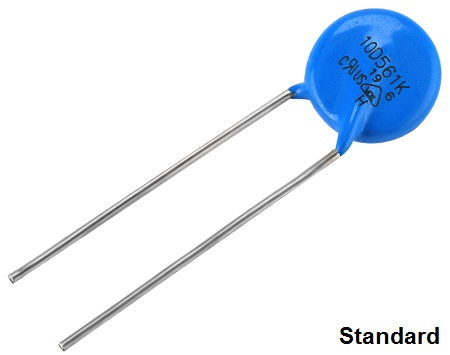

10D Series

Varistor Voltage: 18V~1100V

Max Surge Current: 500A~3500A

Products Size: 10mm

Datasheet

Description

Part Number Standard 10D	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage	Max Surge Current 8/20μs	Certification		Delivery time
	VAC	VDC	V1mA	VC	Imax	UL	VDE	days
VDR-10D180L	11V	14V	18V(15.3~20.7)	36V	250A	√	√	14days
VDR-10D220K	14V	18V	22V(19.8~24.2)	43V	250A	√	√	14days
VDR-10D270K	17V	22V	27V(24.3~29.7)	53V	250A	√	√	14days
VDR-10D330K	20V	26V	33V(29.7~36.3)	66V	250A	√	√	14days
VDR-10D390K	25V	31V	39V(35.1~42.9)	77V	250A	√	√	14days
VDR-10D470K	30V	38V	47V(42.3~51.7)	93V	250A	√	√	14days
VDR-10D560K	35V	45V	56V(50.4~61.6)	100V	250A	√	√	14days
VDR-10D680K	40V	56V	68V(61.2~74.8)	135V	250A	√	√	14days
VDR-10D820K	50V	65V	82V(73.8~90.2)	135V	1200A	√	√	14days
VDR-10D101K	60V	85V	100V(90~110)	165V	1200A	√	√	14days
VDR-10D121K	75V	100V	120V(108~132)	200V	1200A	√	√	14days
VDR-10D151K	95V	125V	150V(135~165)	250V	1200A	√	√	14days
VDR-10D181K	115V	150V	180V(162~198)	300V	1200A	√	√	14days
VDR-10D201K	130V	170V	200V(180~220)	340V	1200A	√	√	14days
VDR-10D221K	140V	180V	220V(198~242)	360V	1200A	√	√	14days
VDR-10D241K	150V	200V	240V(216~264)	395V	1200A	√	√	14days
VDR-10D271K	175V	225V	270V(243~297)	455V	1200A	√	√	14days
VDR-10D301K	190V	250V	300V(270~330)	500V	1200A	√	√	14days
VDR-10D331K	210V	275V	330V(297~363)	550V	1200A	√	√	14days
VDR-10D361K	230V	300V	360V(324~396)	595V	1200A	√	√	14days
VDR-10D391K	250V	320V	390V(351~429)	650V	1200A	√	√	14days
VDR-10D431K	275V	350V	430V(387~473)	710V	1200A	√	√	14days
VDR-10D471K	300V	385V	470V(423~517)	775V	1200A	√	√	14days
VDR-10D511K	320V	415V	510V(459~561)	845V	1200A	√	√	14days
VDR-10D561K	350V	460V	560V(504~616)	925V	1200A	√	√	14days
VDR-10D621K	385V	505V	620V(558~682)	1025V	1200A	√	√	14days
VDR-10D681K	420V	560V	680V(612~748)	1120V	1200A	√	√	14days
VDR-10D751K	460V	615V	750V(675~825)	1240V	1200A	√	√	14days
VDR-10D781K	485V	640V	780V(702~858)	1290V	1200A	√	√	14days
VDR-10D821K	510V	670V	820V(738~902)	1355V	1200A	√	√	14days
VDR-10D911K	550V	745V	910V(819~1001)	1500V	2500A	√	√	14days
VDR-10D102K	625V	825V	1000V(900~1100)	1650V	2500A	√	√	14days
VDR-10D112K	680V	895V	1100V(990~1210)	1815V	2500A	√	√	14days
High Surge 10D MOV
Part Number High Surge 10D	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage	Max Surge Current 8/20μs	Certification		Delivery time
	VAC	VDC	V1mA	VC	Imax	UL	VDE	days
VDR-10D180LJ	11V	14V	18V(15.3~20.7)	36V	1000A	√	√	15days
VDR-10D220KJ	14V	18V	22V(19.8~24.2)	43V	1000A	√	√	15days
VDR-10D270KJ	17V	22V	27V(24.3~29.7)	53V	1000A	√	√	15days
VDR-10D330KJ	20V	26V	33V(29.7~36.3)	66V	1000A	√	√	15days
VDR-10D390KJ	25V	31V	39V(35.1~42.9)	77V	1000A	√	√	15days
VDR-10D470KJ	30V	38V	47V(42.3~51.7)	93V	1000A	√	√	15days
VDR-10D560KJ	35V	45V	56V(50.4~61.6)	100V	1000A	√	√	15days
VDR-10D680KJ	40V	56V	68V(61.2~74.8)	135V	1000A	√	√	15days
VDR-10D820KJ	50V	65V	82V(73.8~90.2)	135V	3500A	√	√	15days
VDR-10D101KJ	60V	85V	100V(90~110)	165V	3500A	√	√	15days
VDR-10D121KJ	75V	100V	120V(108~132)	200V	3500A	√	√	15days
VDR-10D151KJ	95V	125V	150V(135~165)	250V	3500A	√	√	15days
VDR-10D181KJ	115V	150V	180V(162~198)	300V	3500A	√	√	15days
VDR-10D201KJ	130V	170V	200V(180~220)	340V	3500A	√	√	15days
VDR-10D221KJ	140V	180V	220V(198~242)	360V	3500A	√	√	15days
VDR-10D241KJ	150V	200V	240V(216~264)	395V	3500A	√	√	15days
VDR-10D271KJ	175V	225V	270V(243~297)	455V	3500A	√	√	15days
VDR-10D301KJ	190V	250V	300V(270~330)	500V	3500A	√	√	15days
VDR-10D331KJ	210V	275V	330V(297~363)	550V	3500A	√	√	15days
VDR-10D361KJ	230V	300V	360V(324~396)	595V	3500A	√	√	15days
VDR-10D391KJ	250V	320V	390V(351~429)	650V	3500A	√	√	15days
VDR-10D431KJ	275V	350V	430V(387~473)	710V	3500A	√	√	15days
VDR-10D471KJ	300V	385V	470V(423~517)	775V	3500A	√	√	15days
VDR-10D511KJ	320V	415V	510V(459~561)	845V	3500A	√	√	15days
VDR-10D561KJ	350V	460V	560V(504~616)	925V	3500A	√	√	15days
VDR-10D621KJ	385V	505V	620V(558~682)	1025V	3500A	√	√	15days
VDR-10D681KJ	420V	560V	680V(612~748)	1120V	3500A	√	√	15days
VDR-10D751KJ	460V	615V	750V(675~825)	1240V	3500A	√	√	15days
VDR-10D781KJ	485V	640V	780V(702~858)	1290V	3500A	√	√	15days
VDR-10D821KJ	510V	670V	820V(738~902)	1355V	3500A	√	√	15days
VDR-10D911KJ	550V	745V	910V(819~1001)	1500V	3500A	√	√	15days
VDR-10D102KJ	625V	825V	1000V(900~1100)	1650V	3500A	√	√	15days
VDR-10D112KJ	680V	895V	1100V(990~1210)	1815V	3500A	√	√	15days
