07D Series

07D Series

Varistor Voltage: 18V~820V

Max Surge Current: 250A~1750A

Products Size: 7mm


Part Number

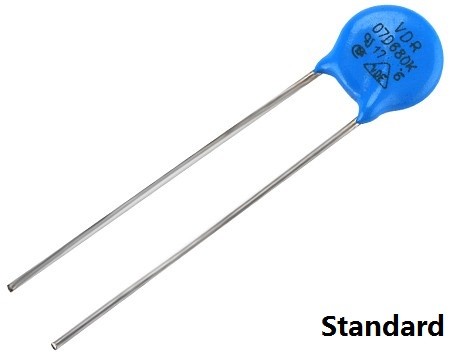

Standard 07D

Maximum Allowable

 Voltage

Varistor Voltage

Maximum Clamping Voltage

Max Surge Current 8/20μs

Certification

Delivery time


VAC

VDC

V1mA

VC

Imax

UL

VDE

days

VDR-07D180L

11V

14V

18V(15.3~20.7)

36V

250A

15days

VDR-07D220K

14V

18V

22V(19.8~24.2)

43V

250A

15days

VDR-07D270K

17V

22V

27V(24.3~29.7)

53V

250A

15days

VDR-07D330K

20V

26V

33V(29.7~36.3)

66V

250A

15days

VDR-07D390K

25V

31V

39V(35.1~42.9)

77V

250A

15days

VDR-07D470K

30V

38V

47V(42.3~51.7)

93V

250A

15days

VDR-07D560K

35V

45V

56V(50.4~61.6)

100V

250A

15days

VDR-07D680K

40V

56V

68V(61.2~74.8)

135V

250A

15days

VDR-07D820K

50V

65V

82V(73.8~90.2)

135V

1200A

15days

VDR-07D101K

60V

85V

100V(90~110)

165V

1200A

15days

VDR-07D121K

75V

100V

120V(108~132)

200V

1200A

15days

VDR-07D151K

95V

125V

150V(135~165)

250V

1200A

15days

VDR-07D181K

115V

150V

180V(162~198)

300V

1200A

15days

VDR-07D201K

130V

170V

200V(180~220)

340V

1200A

15days

VDR-07D221K

140V

180V

220V(198~242)

360V

1200A

15days

VDR-07D241K

150V

200V

240V(216~264)

395V

1200A

15days

VDR-07D271K

175V

225V

270V(243~297)

455V

1200A

15days

VDR-07D301K

190V

250V

300V(270~330)

500V

1200A

15days

VDR-07D331K

210V

275V

330V(297~363)

550V

1200A

15days

VDR-07D361K

230V

300V

360V(324~396)

595V

1200A

15days

VDR-07D391K

250V

320V

390V(351~429)

650V

1200A

15days

VDR-07D431K

275V

350V

430V(387~473)

710V

1200A

15days

VDR-07D471K

300V

385V

470V(423~517)

775V

1200A

15days

VDR-07D511K

320V

415V

510V(459~561)

845V

1200A

15days

VDR-07D561K

350V

460V

560V(504~616)

925V

1200A

15days

VDR-07D621K

385V

505V

620V(558~682)

1025V

1200A

-

15days

VDR-07D681K

420V

560V

680V(612~748)

1120V

1200A

-

15days

VDR-07D751K

460V

615V

750V(675~825)

1240V

1200A

-

15days

VDR-07D781K

485V

640V

780V(702~858)

1290V

1200A

-

15days

VDR-07D821K

510V

670V

820V(738~902)

1355V

1200A

-

15days

High Surge 07D MOV

Part Number

High Surge 07D

Maximum Allowable

 Voltage

Varistor Voltage

Maximum Clamping Voltage

Max Surge Current 8/20μs

Certification

Delivery time


VAC

VDC

V1mA

VC

Imax

UL

VDE

days

VDR-07D180LJ

11V

14V

18V(15.3~20.7)

36V

500A

15days

VDR-07D220KJ

14V

18V

22V(19.8~24.2)

43V

500A

15days

VDR-07D270KJ

17V

22V

27V(24.3~29.7)

53V

500A

15days

VDR-07D330KJ

20V

26V

33V(29.7~36.3)

66V

500A

15days

VDR-07D390KJ

25V

31V

39V(35.1~42.9)

77V

500A

15days

VDR-07D470KJ

30V

38V

47V(42.3~51.7)

93V

500A

15days

VDR-07D560KJ

35V

45V

56V(50.4~61.6)

100V

500A

15days

VDR-07D680KJ

40V

56V

68V(61.2~74.8)

135V

500A

15days

VDR-07D820KJ

50V

65V

82V(73.8~90.2)

135V

1750A

15days

VDR-07D101KJ

60V

85V

100V(90~110)

165V

1750A

15days

VDR-07D121KJ

75V

100V

120V(108~132)

200V

1750A

15days

VDR-07D151KJ

95V

125V

150V(135~165)

250V

1750A

15days

VDR-07D181KJ

115V

150V

180V(162~198)

300V

1750A

15days

VDR-07D201KJ

130V

170V

200V(180~220)

340V

1750A

15days

VDR-07D221KJ

140V

180V

220V(198~242)

360V

1750A

15days

VDR-07D241KJ

150V

200V

240V(216~264)

395V

1750A

15days

VDR-07D271KJ

175V

225V

270V(243~297)

455V

1750A

15days

VDR-07D301KJ

190V

250V

300V(270~330)

500V

1750A

15days

VDR-07D331KJ

210V

275V

330V(297~363)

550V

1750A

15days

VDR-07D361KJ

230V

300V

360V(324~396)

595V

1750A

15days

VDR-07D391KJ

250V

320V

390V(351~429)

650V

1750A

15days

VDR-07D431KJ

275V

350V

430V(387~473)

710V

1750A

15days

VDR-07D471KJ

300V

385V

470V(423~517)

775V

1750A

15days

VDR-07D511KJ

320V

415V

510V(459~561)

845V

1750A

15days

VDR-07D561KJ

350V

460V

560V(504~616)

925V

1750A

15days

VDR-07D621KJ

385V

505V

620V(558~682)

1025V

1750A

-

15days

VDR-07D681KJ

420V

560V

680V(612~748)

1120V

1750A

-

15days

VDR-07D751KJ

460V

615V

750V(675~825)

1240V

1750A

-

15days

VDR-07D781KJ

485V

640V

780V(702~858)

1290V

1750A

-

15days

VDR-07D821KJ

510V

670V

820V(738~902)

1355V

1750A

-

15days
