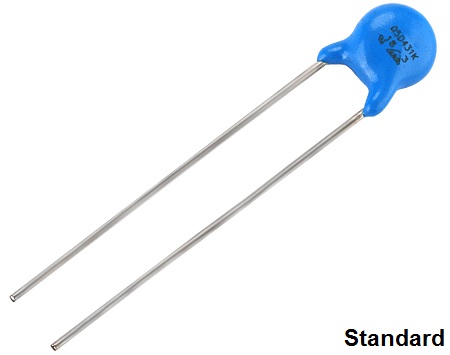

05D Series

Varistor Voltage: 18V~750V

Max Surge Current: 100A~800A

Products Size: 5mm

Datasheet

Description

Part Number Standard 05D	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage	Max Surge Current 8/20μs	Certification		Delivery time
	VAC	VDC	V1mA	VC	Imax	UL	VDE	days
05D180K	11V	14V	18V(15.3~20.7)	40V	100A	√	√	12days
05D220K	14V	18V	22V(19.8~24.2)	48V	100A	√	√	12days
05D270K	17V	22V	27V(24.3~29.7)	60V	100A	√	√	12days
05D330K	20V	26V	33V(29.7~36.3)	73V	100A	√	√	12days
05D390K	25V	31V	39V(35.1~42.9)	80V	100A	√	√	12days
05D470K	30V	38V	47V(42.3~51.7)	104V	100A	√	√	12days
05D560K	35V	45V	56V(50.4~61.6)	123V	100A	√	√	12days
05D680K	40V	56V	68V(61.2~74.8)	145V	100A	√	√	12days
05D820K	50V	65V	82V(73.8~90.2)	150V	400A	√	√	12days
05D101K	60V	85V	100V(90~110)	177V	400A	√	√	12days
05D121K	75V	100V	120V(108~132)	210V	400A	√	√	12days
05D151K	95V	125V	150V(135~165)	260V	400A	√	√	12days
05D181K	115V	150V	180V(162~198)	320V	400A	√	√	12days
05D201K	130V	170V	200V(180~220)	355V	400A	√	√	12days
05D221K	140V	180V	220V(198~242)	380V	400A	√	√	12days
05D241K	150V	200V	240V(216~264)	415V	400A	√	√	12days
05D271K	175V	225V	270V(243~297)	475V	400A	√	√	12days
05D301K	190V	250V	300V(270~330)	520V	400A	√	√	12days
05D331K	210V	275V	330V(297~363)	570V	400A	√	√	12days
05D361K	230V	300V	360V(324~396)	620V	400A	√	√	12days
05D391K	250V	320V	390V(351~429)	675V	400A	√	√	12days
05D431K	275V	350V	430V(387~473)	745V	400A	√	√	12days
05D471K	300V	385V	470V(423~517)	810V	400A	√	√	12days
05D511K	320V	415V	510V(459~561)	845V	400A	√	-	12days
05D561K	350V	460V	560V(504~616)	920V	400A	√	-	12days
05D621K	385V	505V	620V(558~682)	1025V	400A	√	-	12days
05D681K	420V	560V	680V(612~748)	1120V	400A	√	-	12days
05D751K	460V	615V	750V(675~825)	1240V	400A	-	-	12days
High Surge 05D MOV
Part Number High Surge 05D	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage	Max Surge Current 8/20μs	Certification		Delivery time
	VAC	VDC	V1mA	VC	Imax	UL	VDE	days
05D180LJ	11V	14V	18V(15.3~20.7)	40V	250A	-	-	14days
05D220KJ	14V	18V	22V(19.8~24.2)	48V	250A	-	-	14days
05D270KJ	17V	22V	27V(24.3~29.7)	60V	250A	-	-	14days
05D330KJ	20V	26V	33V(29.7~36.3)	73V	250A	-	-	14days
05D390KJ	25V	31V	39V(35.1~42.9)	80V	250A	-	-	14days
05D470KJ	30V	38V	47V(42.3~51.7)	104V	250A	-	-	14days
05D560KJ	35V	45V	56V(50.4~61.6)	123V	250A	-	-	14days
05D680KJ	40V	56V	68V(61.2~74.8)	145V	250A	-	-	14days
05D820KJ	50V	65V	82V(73.8~90.2)	150V	800A	-	-	14days
05D101KJ	60V	85V	100V(90~110)	177V	800A	-	-	14days
05D121KJ	75V	100V	120V(108~132)	210V	800A	-	-	14days
05D151KJ	95V	125V	150V(135~165)	260V	800A	-	-	14days
05D181KJ	115V	150V	180V(162~198)	320V	800A	-	-	14days
05D201KJ	130V	170V	200V(180~220)	355V	800A	-	-	14days
05D221KJ	140V	180V	220V(198~242)	380V	800A	-	-	14days
05D241KJ	150V	200V	240V(216~264)	415V	800A	-	-	14days
05D271KJ	175V	225V	270V(243~297)	475V	800A	-	-	14days
05D301KJ	190V	250V	300V(270~330)	520V	800A	-	-	14days
05D331KJ	210V	275V	330V(297~363)	570V	800A	-	-	14days
05D361KJ	230V	300V	360V(324~396)	620V	800A	-	-	14days
05D391KJ	250V	320V	390V(351~429)	675V	800A	-	-	14days
05D431KJ	275V	350V	430V(387~473)	745V	800A	-	-	14days
05D471KJ	300V	385V	470V(423~517)	810V	800A	-	-	14days
05D511KJ	320V	415V	510V(459~561)	845V	800A	-	-	14days
05D561KJ	350V	460V	560V(504~616)	920V	800A	-	-	14days
05D621KJ	385V	505V	620V(558~682)	1025V	800A	-	-	14days
05D681KJ	420V	560V	680V(612~748)	1120V	800A	-	-	14days
05D751KJ	460V	615V	750V(675~825)	1240V	800A	-	-	14days
