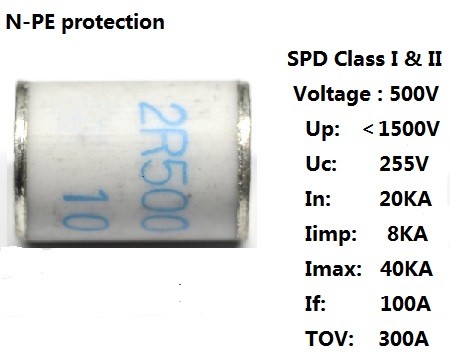

Φ11.8x17.2mm - H2R12-500xx

Dc spark-over voltage (100V/s)      1)

400V - 600V

Front of wave spark-over voltage at 1.2/50us, 6KV

＜1500V

Breakdown time

           - typical values

＜100ns

＜20ns

Insulation resistance @DC250V

  10000MΩ

Class I  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Impulse current 10/350μs                                             Iimp

Follow Current at 50/60Hz at 255V                               If

255V

20KA

8KA

100A

Class II  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Maximum discharge current 8/20μs                            Imax

Follow Current at 50/60Hz at 255V                               If

255V

20KA

40KA

100A

AC discharge current (TOV at 1200V ,1 operation 50Hz,0.2 s)

＜300A

capacitance at 1MHz

＜4pF

Weight

~ 8g

UL 1449 Certification

On the UL List

Delivery time

20days

Operation and storage temperature

-40℃ … +90℃

Marking, Blue

2R 500 YY

500 - Nominal voltage

YY - Year of production
