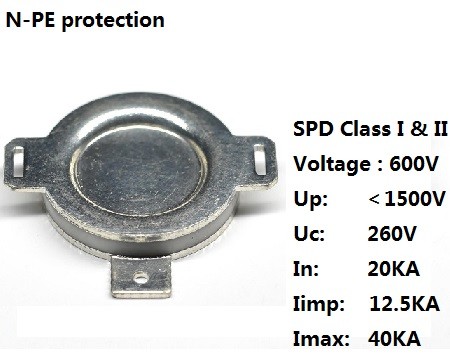

Φ20x4.1mm - H2R20-600x

Nominal Dc spark-over voltage @ 100V/S  1)2)

600V ±20%

Maximum impulse spark-over voltage @ 1KV/μs

＜1000V

Breakdown time

           - typical values

＜100ns

＜20ns

Insulation resistance @DC250V

  1000MΩ

Class I  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Impulse current 10/350μs                                              Iimp

260V

20KA

12.5KA

Class II  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Maximum discharge current 8/20μs                            Imax

260V

20KA

40KA

capacitance at 1MHz

＜5pF

Weight

~ 7g

UL 1449 Certification

On the UL List

Delivery time

20days

Operation and storage temperature

-40℃ … +90℃

Marking, Blue

1) At delivery AQL 0.65 level II America Military Standard 105E.

2) In ionized mode

 Test according to ITU-T Rec. K.12.

2R600 YY

600 - Nominal voltage

YY - Year of production
