Φ12x6.5mm - H2R12-1000

Φ12x6.5mm - H2R12-1000

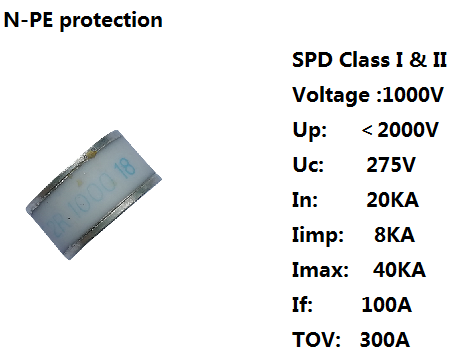

AC Power line N-PE applications

Class I and Class II Surge protection

Voltage : 1000V

Up: <2000V

Uc:  275V

In:  20KA

Iimp: 8KA

Imax: 40KA

If:  100A

TOV: 300A


Specification of  H2R12-1000

Dc spark-over voltage (100V/s)      1)

1000V ±20%

Maximum impulse spark-over voltage (1KV/μs)

2000V

Breakdown time

           - typical values

100ns

20ns

Insulation resistance @DC250V

  1000MΩ

Class I  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μ                              In

Impulse current 10/350μ                                            Iimp

Follow Current at 50/60Hz at 380V                               If



380V

20KA

8KA

100A

Class II  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μ                              In

Maximum discharge current 8/20μ                            Imax

Follow Current at 50/60Hz at 380V                               If



380V

20KA

40KA

100A

AC discharge current (TOV at 1200V ,1 operation 50Hz,0.2 s)

300A

capacitance at 1MHz

4pF

Weight

3g

UL 1449 Certification

On the UL List



Delivery time

20days

Operation and storage temperature

-40 … +90

Marking, Blue

1) At delivery AQL 0.65 level II Military Standard 105E.

    Approvals/ Standards   IEC61643-11

2R1000

YY

1000 - Nominal voltage

YY - Year of production
