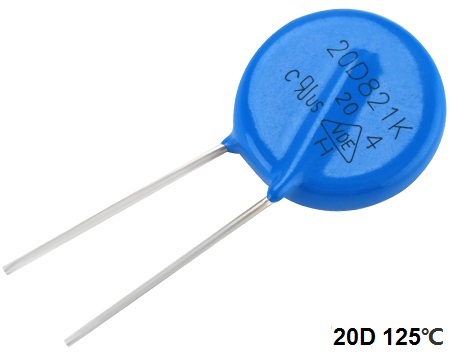

20D高温125度

Varistor Voltage: 18V~1800V

Max Surge Current: 2000A~10000A

Withstanding High Temperature: 125℃

Products Size: 20mm

Datasheet

Description

Part Number Standard 125℃ 20D	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage	Max Surge Current 8/20μs	Certification		Delivery time
	VAC	VDC	V1mA	VC	Imax	UL	VDE	days
20D180KH	11V	14V	18V(15.3~20.7)	36V	2000A	√	√	14Days
20D220KH	14V	18V	22V(19.8~24.2)	43V	2000A	√	√	14Days
20D270KH	17V	22V	27V(24.3~29.7)	53V	2000A	√	√	14Days
20D330KH	20V	26V	33V(29.7~36.3)	66V	2000A	√	√	14Days
20D390KH	25V	31V	39V(35.1~42.9)	77V	2000A	√	√	14Days
20D470KH	30V	38V	47V(42.3~51.7)	93V	2000A	√	√	14Days
20D560KH	35V	45V	56V(50.4~61.6)	100V	2000A	√	√	14Days
20D680KH	40V	56V	68V(61.2~74.8)	135V	2000A	√	√	14Days
20D820KH	50V	65V	82V(73.8~90.2)	135V	6500A	√	√	14Days
20D101KH	60V	85V	100V(90~110)	165V	6500A	√	√	14Days
20D121KH	75V	100V	120V(108~132)	200V	6500A	√	√	14Days
20D151KH	95V	125V	150V(135~165)	250V	6500A	√	√	14Days
20D181KH	115V	150V	180V(162~198)	300V	6500A	√	√	14Days
20D201KH	130V	170V	200V(180~220)	340V	6500A	√	√	14Days
20D221KH	140V	180V	220V(198~242)	360V	6500A	√	√	14Days
20D241KH	150V	200V	240V(216~264)	395V	6500A	√	√	14Days
20D271KH	175V	225V	270V(243~297)	455V	6500A	√	√	14Days
20D301KH	190V	250V	300V(270~330)	500V	6500A	√	√	14Days
20D331KH	210V	275V	330V(297~363)	550V	6500A	√	√	14Days
20D361KH	230V	300V	360V(324~396)	595V	6500A	√	√	14Days
20D391KH	250V	320V	390V(351~429)	650V	6500A	√	√	14Days
20D431KH	275V	350V	430V(387~473)	710V	6500A	√	√	14Days
20D471KH	300V	385V	470V(423~517)	775V	6500A	√	√	14Days
20D511KH	320V	415V	510V(459~561)	845V	6500A	√	√	14Days
20D561KH	350V	460V	560V(504~616)	925V	6500A	√	√	14Days
20D621KH	385V	505V	620V(558~682)	1025V	6500A	√	√	14Days
20D681KH	420V	560V	680V(612~748)	1120V	6500A	√	√	14Days
20D751KH	460V	615V	750V(675~825)	1240V	6500A	√	√	14Days
20D781KH	485V	640V	780V(702~858)	1290V	6500A	√	√	14Days
20D821KH	510V	670V	820V(738~902)	1355V	6500A	√	√	14Days
20D911KH	550V	745V	910V(819~1001)	1500V	6500A	√	√	14Days
20D102KH	625V	825V	1000V(900~1100)	1650V	6500A	√	√	14Days
20D112KH	680V	895V	1100V(990~1210)	1815V	6500A	√	√	14Days
20D122KH	750V	990V	1200V(1080~1320)	1980V	6500A	√	-	14Days
20D182KH	1000V	1465V	1800V(1620~1980)	2970V	6500A	√	-	14Days
High Surge 20D MOV
Part Number High Surge 125℃ 20D	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage	Max Surge Current 8/20μs	Certification		Delivery time
	VAC	VDC	V1mA	VC	Imax	UL	VDE	days
20D180KHJ	11V	14V	18V(15.3~20.7)	36V	3000A	√	√	14Days
20D220KHJ	14V	18V	22V(19.8~24.2)	43V	3000A	√	√	14Days
20D270KHJ	17V	22V	27V(24.3~29.7)	53V	3000A	√	√	14Days
20D330KHJ	20V	26V	33V(29.7~36.3)	66V	3000A	√	√	14Days
20D390KHJ	25V	31V	39V(35.1~42.9)	77V	3000A	√	√	14Days
20D470KHJ	30V	38V	47V(42.3~51.7)	93V	3000A	√	√	14Days
20D560KHJ	35V	45V	56V(50.4~61.6)	100V	3000A	√	√	14Days
20D680KHJ	40V	56V	68V(61.2~74.8)	135V	3000A	√	√	14Days
20D820KHJ	50V	65V	82V(73.8~90.2)	135V	10000A	√	√	14Days
20D101KHJ	60V	85V	100V(90~110)	165V	10000A	√	√	14Days
20D121KHJ	75V	100V	120V(108~132)	200V	10000A	√	√	14Days
20D151KHJ	95V	125V	150V(135~165)	250V	10000A	√	√	14Days
20D181KHJ	115V	150V	180V(162~198)	300V	10000A	√	√	14Days
20D201KHJ	130V	170V	200V(180~220)	340V	10000A	√	√	14Days
20D221KHJ	140V	180V	220V(198~242)	360V	10000A	√	√	14Days
20D241KHJ	150V	200V	240V(216~264)	395V	10000A	√	√	14Days
20D271KHJ	175V	225V	270V(243~297)	455V	10000A	√	√	14Days
20D301KHJ	190V	250V	300V(270~330)	500V	10000A	√	√	14Days
20D331KHJ	210V	275V	330V(297~363)	550V	10000A	√	√	14Days
20D361KHJ	230V	300V	360V(324~396)	595V	10000A	√	√	14Days
20D391KHJ	250V	320V	390V(351~429)	650V	10000A	√	√	14Days
20D431KHJ	275V	350V	430V(387~473)	710V	10000A	√	√	14Days
20D471KHJ	300V	385V	470V(423~517)	775V	10000A	√	√	14Days
20D511KHJ	320V	415V	510V(459~561)	845V	10000A	√	√	14Days
20D561KHJ	350V	460V	560V(504~616)	925V	10000A	√	√	14Days
20D621KHJ	385V	505V	620V(558~682)	1025V	10000A	√	√	14Days
20D681KHJ	420V	560V	680V(612~748)	1120V	10000A	√	√	14Days
20D751KHJ	460V	615V	750V(675~825)	1240V	10000A	√	√	14Days
20D781KHJ	485V	640V	780V(702~858)	1290V	10000A	√	√	14Days
20D821KHJ	510V	670V	820V(738~902)	1355V	10000A	√	√	14Days
20D911KHJ	550V	745V	910V(819~1001)	1500V	10000A	√	√	14Days
20D102KHJ	625V	825V	1000V(900~1100)	1650V	10000A	√	√	14Days
20D112KHJ	680V	895V	1100V(990~1210)	1815V	10000A	√	√	14Days
20D122KHJ	750V	990V	1200V(1080~1320)	1980V	10000A	√	-	14Days
20D182KHJ	1000V	1465V	1800V(1620~1980)	2970V	10000A	√	-	14Days
