Your Current Location >Home > 产品中心 > 压敏电阻 > 14D 6KV,3KA系列

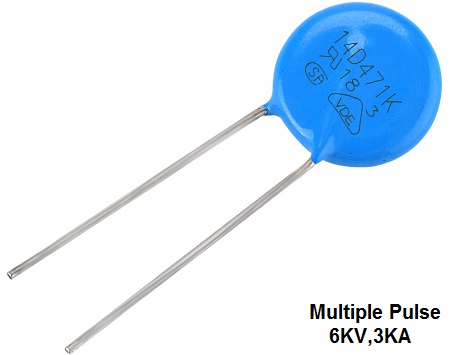

14D 6KV,3KA系列

Varistor Voltage: 82V~820V

Max Surge Current: 6KV, 3KA

Products Size: 14mm

Datasheet

Description

Part Number 6KV, 3KA MOV	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage	1.2/50us & 8/20us combination of wave,6KV/3KA Sub 0,90,180,270 four phases	Delivery time
	VAC	VDC	V1mA	VC		days
14D820KEC	50V	65V	82V(73.8~90.2)	135V	40 times	14days
14D101KEC	60V	85V	100V(90~110)	165V	40 times	14days
14D121KEC	75V	100V	120V(108~132)	200V	40 times	14days
14D151KEC	95V	125V	150V(135~165)	250V	40 times	14days
14D181KEC	115V	150V	180V(162~198)	300V	40 times	14days
14D201KEC	130V	170V	200V(180~220)	340V	40 times	14days
14D221KEC	140V	180V	220V(198~242)	360V	40 times	14days
14D241KEC	150V	200V	240V(216~264)	395V	40 times	14days
14D271KEC	175V	225V	270V(243~297)	455V	40 times	14days
14D301KEC	190V	250V	300V(270~330)	500V	40 times	14days
14D331KEC	210V	275V	330V(297~363)	550V	40 times	14days
14D361KEC	230V	300V	360V(324~396)	595V	40 times	14days
14D391KEC	250V	320V	390V(351~429)	650V	40 times	14days
14D431KEC	275V	350V	430V(387~473)	710V	40 times	14days
14D471KEC	300V	385V	470V(423~517)	775V	40 times	14days
14D511KEC	320V	415V	510V(459~561)	845V	40 times	14days
14D561KEC	350V	460V	560V(504~616)	925V	40 times	14days
14D621KEC	385V	505V	620V(558~682)	1025V	40 times	14days
14D681KEC	420V	560V	680V(612~748)	1120V	40 times	14days
14D751KEC	460V	615V	750V(675~825)	1240V	40 times	14days
14D781KEC	485V	640V	780V(702~858)	1290V	40 times	14days
14D821KEC	510V	670V	820V(738~902)	1355V	40 times	14days
6KV, 3KA, 60time
14D820KHC	50V	65V	82V(73.8~90.2)	135V	60 times	14days
14D101KHC	60V	85V	100V(90~110)	165V	60 times	14days
14D121KHC	75V	100V	120V(108~132)	200V	60 times	14days
14D151KHC	95V	125V	150V(135~165)	250V	60 times	14days
14D181KHC	115V	150V	180V(162~198)	300V	60 times	14days
14D201KHC	130V	170V	200V(180~220)	340V	60 times	14days
14D221KHC	140V	180V	220V(198~242)	360V	60 times	14days
14D241KHC	150V	200V	240V(216~264)	395V	60 times	14days
14D271KHC	175V	225V	270V(243~297)	455V	60 times	14days
14D301KHC	190V	250V	300V(270~330)	500V	60 times	14days
14D331KHC	210V	275V	330V(297~363)	550V	60 times	14days
14D361KHC	230V	300V	360V(324~396)	595V	60 times	14days
14D391KHC	250V	320V	390V(351~429)	650V	60 times	14days
14D431KHC	275V	350V	430V(387~473)	710V	60 times	14days
14D471KHC	300V	385V	470V(423~517)	775V	60 times	14days
14D511KHC	320V	415V	510V(459~561)	845V	60 times	14days
14D561KHC	350V	460V	560V(504~616)	925V	60 times	14days
14D621KHC	385V	505V	620V(558~682)	1025V	60 times	14days
14D681KHC	420V	560V	680V(612~748)	1120V	60 times	14days
14D751KHC	460V	615V	750V(675~825)	1240V	60 times	14days
14D781KHC	485V	640V	780V(702~858)	1290V	60 times	14days
14D821KHC	510V	670V	820V(738~902)	1355V	60 times	14days
