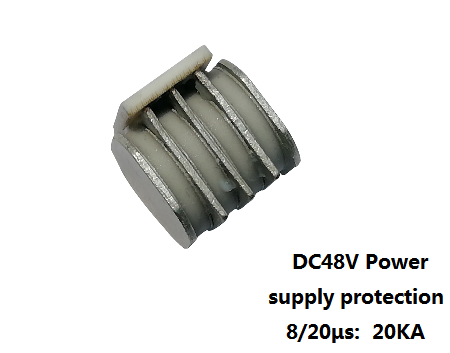

Φ8.3x8.8mm多极放电管

Φ8.3x8.8mm多极放电管

Size:8.3x8.8mm

@8/20μs:  20KA

Part Number:  H5R8-350HSMD1

Applications: DC Power supply protection 48V


Specification of  H5R8-350HSMD1

Dc spark-over voltage (100V/s)

350V

Maximum impulse spark-over voltage @100V/μs (A-B)

1500V

Impulse discharge current (8/20μs  10 times)

20KA

DC working voltage (3000A H)

48VDC

Maximum DC working voltage (3000AH)

53.5VDc

Arc voltage @1A

60V

Insulation resistance @DC100V

  1000MΩ

capacitance at 1MHz

1pF

Weight

3g

Delivery time

21days

Operation and storage temperature

-40 … +90

Marking

1) At delivery AQL 0.65 level II Military Standard 105E.

2)In ionized mode   , Test according to ITU-T Rec. K.12
