Φ20x5.7mm - H2R20-600xx

Φ20x5.7mm - H2R20-600xx

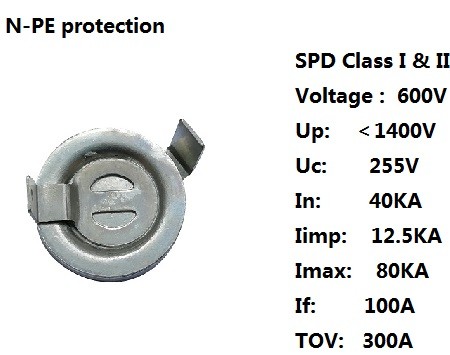

AC Power line N-PE applications

Class I and Class II Surge protection

Voltage : 600V

Up: <1400V

Uc:  255V

In:  40KA

Iimp: 12.5KA

Imax: 80KA

If:  100A

TOV: 300A


Specification of  H2R20-600

Dc spark-over voltage (100V/s)      1)

450V

Maximum impulse spark-over voltage @ 1KV/μs

  1400V

Breakdown time

           - typical values

100ns

40ns

Insulation resistance @DC250V

  1000MΩ

Class I  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μ                              In

Impulse current 10/350μ                                            Iimp

Follow Current at 50/60Hz at 255V                              If



255V

40KA

12.5KA

100A

Class II  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μ                              In

Maximum discharge current 8/20μ                            Imax

Follow Current at 50/60Hz at 255V                               If



255V

40KA

80KA

100A

AC discharge current (TOV at 1200V ,1 operation 50Hz,0.2 s)

300A

capacitance at 1MHz

5pF

Weight

6g

UL 1449 Certification

On the UL List




Delivery time

20days

Operation and storage temperature

-40 … +90

Marking, Blue

1) At delivery AQL 0.65 level II Military Standard 105E.

2) In ionized mode

 Test according to ITU-T Rec. K.12.

2R600 YY

600 - Nominal voltage

YY - Year of production
