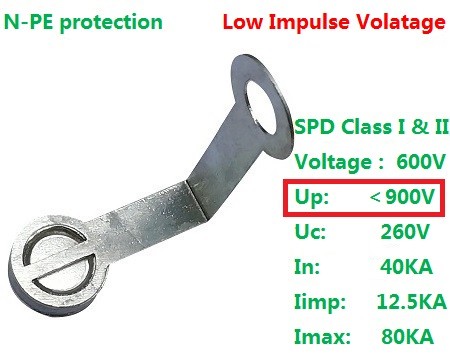

Φ20x5.7mm - H2R20-600xx

Dc spark-over voltage (100V/s)      1)

600V ± 20%

Maximum impulse spark-over voltage @ 1KV/μs

  900V

Breakdown time

           - typical values

＜100ns

＜40ns

Insulation resistance @DC250V

  1000MΩ

Class I  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                              In

Impulse current 10/350μs                                            Iimp

260V

40KA

12.5KA

Class II  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Maximum discharge current 8/20μs                            Imax

260V

40KA

80KA

capacitance at 1MHz

＜4pF

Weight

~ 14g

UL 1449 Certification

On the UL List

Delivery time

20days

Operation and storage temperature

-40℃ … +90℃

Marking, Blue

1) At delivery AQL 0.65 level II Military Standard 105E.

2) In ionized mode

 Test according to ITU-T Rec. K.12.

2R600 YY

600 - Nominal voltage

YY - Year of production
