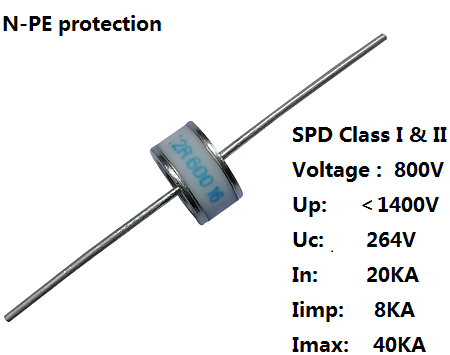

Φ12x6.5mm - H2R12-800xx

Dc spark-over voltage (100V/s)      1)

800V ±20%

Maximum impulse spark-over voltage (1KV/μs)

＜1400V

Breakdown time

           - typical values

＜100ns

＜20ns

Insulation resistance @DC250V

  1000MΩ

Class I  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Impulse current 10/350μs                                             Iimp

264V

20KA

8KA

Class II  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                                In

Maximum discharge current 8/20μs                             Imax

264V

20KA

40KA

capacitance at 1MHz

2pF

Weight

~ 4g

UL 1449 Certification

On the UL List

Delivery time

20days

Operation and storage temperature

-40℃ … +90℃

Marking, Blue

2R 800 YY

800 - Nominal voltage

YY - Year of production
