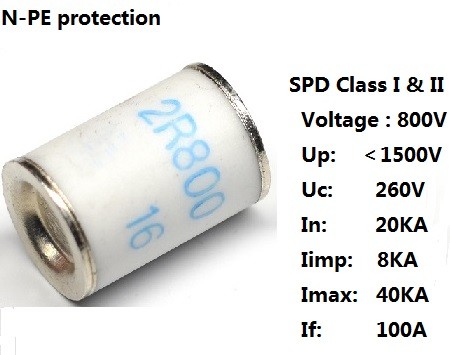

AC Power line N-PE applications
Class I and Class II Surge protection
Voltage : 800V
Up: ＜1500V
Uc: 260V
In: 20KA
Iimp: 8 KA
Imax: 40KA
If: 100A
|
Specification of H2R12-800xx |
||
|
Dc spark-over voltage (100V/s) 1) |
>600V |
|
|
Front of wave spark-over voltage at 1.2/50us, 6KV |
＜1500V |
|
|
Breakdown time - typical values |
＜100ns ＜20ns |
|
|
Insulation resistance @DC250V |
10000MΩ |
|
|
Class I according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Uc Nominal discharge current 8/20μs In Impulse current 10/350μs Iimp Follow Current at 50/60Hz at 255V If |
260V 20KA 8KA 100A |
|
|
Class II according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Uc Nominal discharge current 8/20μs In Maximum discharge current 8/20μs Imax Follow Current at 50/60Hz at 255V If |
260V 20KA 40KA 100A |
|
|
capacitance at 1MHz |
＜3pF |
|
|
Weight |
~ 8g |
|
|
UL 1449 Certification On the UL List |
|
|
|
Delivery time |
20days |
|
|
Operation and storage temperature |
-40℃ … +90℃ |
|
|
Marking, Blue
|
2R 800 YY |
800 - Nominal voltage YY - Year of production |
