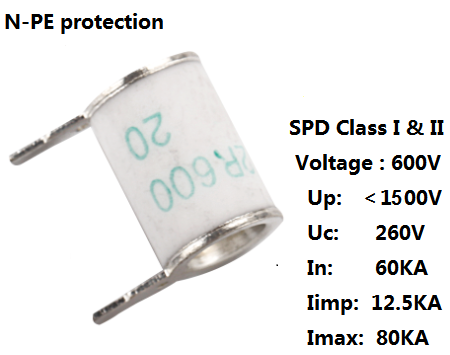

Φ11.8x17.5mm - H2R12-600UE

Φ11.8x17.5mm - H2R12-600UE

AC Power line N-PE applications

Class I and Class II Surge protection

Voltage : 600V

Up: <1300V

Uc:  260V

In:  60KA

Iimp: 12.5KA

Imax: 80KA

Specification of  H2R12-600UE

Dc spark-over voltage (100V/s)      1)

600V ±20%

Impulse spark-over voltage ( 1.2/50us,  6KV)

1500V

Breakdown time

           - typical values

100ns

20ns

Insulation resistance @DC250V

  10000MΩ

Class I  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Impulse current 10/350μs                                             Iimp



260V

60KA

12.5KA

Class II  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Maximum discharge current 8/20μs                            Imax



260V

60KA

80KA

capacitance at 1MHz

~5pF

Weight

~ 8g

UL 1449 Certification

On the UL List






Delivery time

20days

Operation and storage temperature

-40 … +90

Marking, Green



2R 600 YY

600 - Nominal voltage

YY - Year of production
