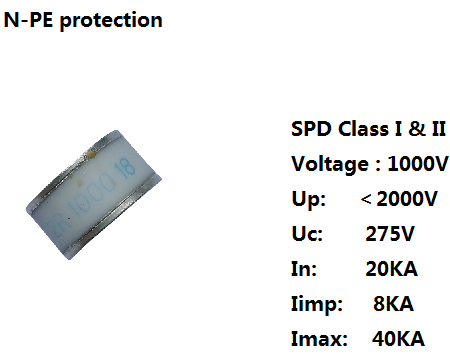

Φ12x6.5mm - H2R12-1000

Dc spark-over voltage (100V/s)      1)

1000V ±20%

Maximum impulse spark-over voltage (1KV/μs)

2000V

Breakdown time

           - typical values

＜100ns

＜20ns

Insulation resistance @DC250V

  1000MΩ

Class I  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Impulse current 10/350μs                                             Iimp

380V

20KA

8KA

Class II  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Maximum discharge current 8/20μs                             Imax

380V

20KA

40KA

capacitance at 1MHz

＜4pF

Weight

~ 3g

UL 1449 Certification

On the UL List

Delivery time

20days

Operation and storage temperature

-40℃ … +90℃

Marking, Blue

1) At delivery AQL 0.65 level II Military Standard 105E.

    Approvals/ Standards   IEC61643-11

2R1000

YY

1000 - Nominal voltage

YY - Year of production
